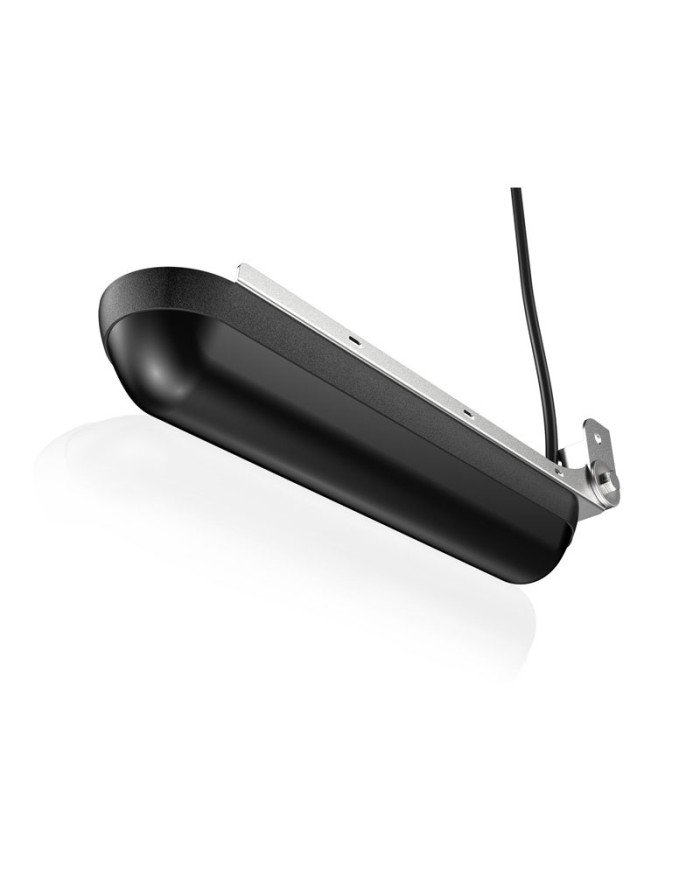

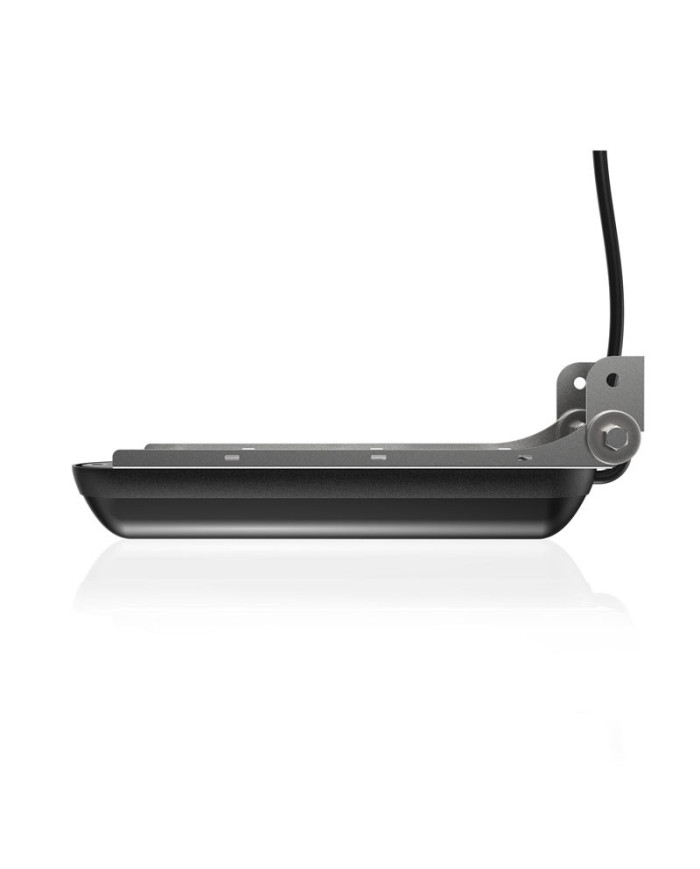

Lowrance Active Imaging 2-in-1 Transducer

Perfect for pinpointing fish-holding areas like rockpiles, standing timber, weedbeds, ditches and drop-offs, Active Imaging™ 2-in-1 sonar delivers superior clarity and the highest resolution images of fish and structure at a longer range than any other structure imaging technology.

Key Features

• More refined detail and better range than any other imaging technology
• Active Imaging 2-in-1 transducer with Lowrance SideScan and DownScan
• Easier target identification with FishReveal™ Smart Target View (Requires Separate 2D Sonar Transducer)
• Active Imaging 3D transducer with Side and Down available
• Supports 455/800kHz frequencies
• Compatible with Lowrance HDS Carbon, HDS LIVE, Simrad NSS evo3 and GO series displays
• Typical Application would be alongside a Dedicated Medium CHIRP AIRMAR TM150M 2D Transducer or 50 kHz P66 or Lo CHIRP / 50 kHz Airmar 1 kW Deep Water Transducer connected to the Dual Sonar Port Channels found on HDS Carbon and HDS LIVE Fishfinders

See structure and cover with a new level of refined detail and at a range unmatched by any other structure imaging technology with Active Imaging™ 2-in-1 sonar featuring SideScan and DownScan with FishReveal™ (Requires Separate 2D Sonar Transducer). The high-level clarity, target separation and detail of Active Imaging will help you find more fish by making it easier to quickly identify fish-holding structure like rockpiles, standing timber, weedbeds, ditches and drop-offs – all at a greater distance from your boat. Add a Separate 2D Sonar Transducer to get the best of CHIRP sonar and DownScan on one screen with the exclusive FishReveal™ Smart Target view that helps you easily recognize fish from structure and cover on high-detailed DownScan images.

Attributes

MPN	000-14490-001
UPC	9420024172780
Brand	Navico
Country of Manufacture	Mexico
Physical Dimensions	67mmW x 79mmH x 280mmL
Transducer Cable Length	7m
Frequency (KHz) & Beam Angle (°)	455/800KHz
Mounting Options	Transom
Plug	9 Pin Navico
Down Imaging	Built-in
Useable Depth Down Imgaging	65m+
Side Imaging	Built-in
Water Temperature	Yes
