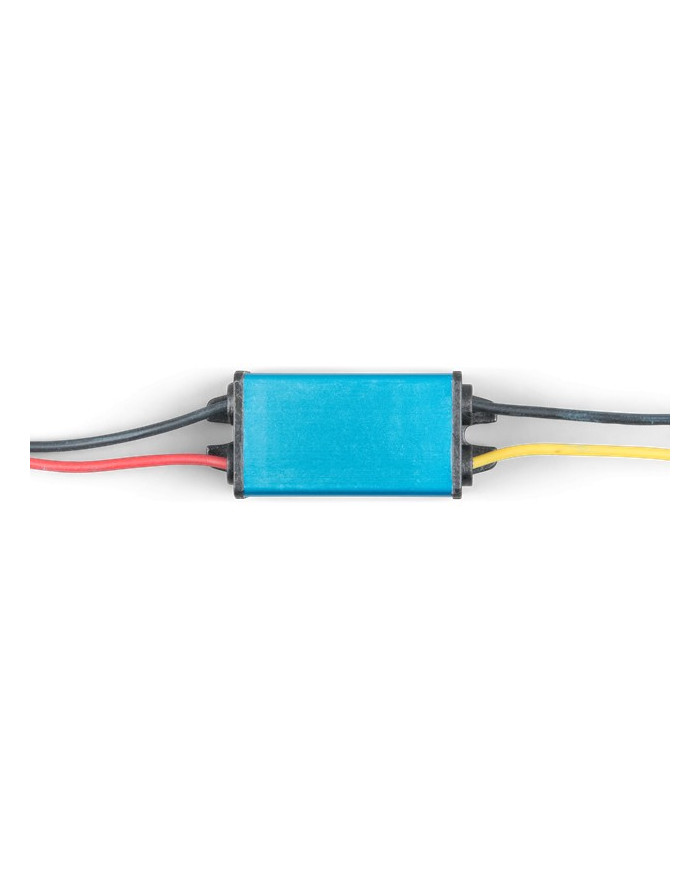

Victron Orion IP67 24/12 - 5A DC-DC Converter Non Isolated
ORI241205260
New
Victron Orion IP67 24/12 - 5A DC-DC Converter Non Isolated
Completely encapsulated: waterproof, shockproof and ignition protected
Water, oil or dirt will not damage the Orion IP67 DC-DC Converter.
More info
Victron Orion IP67 24/12 - 5A DC-DC Converter (Non Isolated)
Completely encapsulated: waterproof, shockproof and ignition protected
Water, oil or dirt will not damage the Orion IP67 DC-DC Converter. The casing is made of cast aluminium and the electronics are moulded in resin.
Victron Orion IP67 24/12 - 5A DC-DC Converters
Completely encapsulated: waterproof, shockproof and ignition protected Water, oil or dirt will not damage the Orion IP67 DC-DC Converter.
The casing is made of cast aluminium and the electronics are moulded in resin.
Extra-long input and output cables Thanks to the cables of 1.8 meters in length, intermediate cable interconnections to increase length even more will in most cases not be needed. This is an important reliability increasing feature in an area were IP67 protection grade is needed.
Wide input voltage range With 15 to 40 Volts input range, a stable output is ensured during surges or sags due to other equipment connected to same battery.
Protected against overheating It can be used in a hot environment such as a machine room
Orion IP67 24/12-5 (Non Isolated)
Input voltage range 15-40VDC 18-35VDC 10-15VDC
Under voltage shutdown 13V
Under voltage restart 14V
No load current at 24V 1mA
Ooutput voltage 12V +/- 3%
Maximum continuous output current 5A
Efficiency 93%
Ripple & Noise 75mVpp
Operating temperature range (derate 3% per °C above 40°C) -40 to +70°C (full rated output up to 40°C)
Overload protection Hiccup mode, recovers automatically after fault condition is removed.
Short circuit proof: Yes Protection against reverse polarity connection With external fuse or circuit breaker (not included)
ENCLOSURE Material & Colour Aluminium (blue RAL 5012)
Protection category IP67
DC connection Two input and two output cables, length 1,8m
Mounting Bolts M6
Cable cross section:
Iinput 0,8mm² (18 AWG)
Output 0,8mm² (18 AWG) 1,5mm²
Weight (kg) 50 g
Dimensions (h x w x d in mm) 25 x 43 x 20
STANDARDS
Safety EN 60950
Emission EN 61000-6-3, EN 55014-1
Immunity EN 55014-2, EN 61000-6-1, EN 61000-6-2
Automotive Directive ECE R10-4
Vibration IEC 68-2-6: 10-150 Hz / 1.0 G
Available in 5 models
Orion IP67 24/12-5
Orion IP67 24/12-10
Orion IP67 24/12-20
Orion IP67 24/12-100
Orion IP67 12/24-50
Orion IP67 24/12-5
Orion IP67 24/12-10
Orion IP67 24/12-20
Orion IP67 24/12-100
Orion IP67 12/24-50
