BPC900110114
New
Cable Length: 1.5 m
Cable c.s.a: 3.3 mm2 / 12 AWG
Maximum Current: 20 Amps
(Batteries, Charger, and accessories not included)
Warning: Last items in stock!
Availability date:

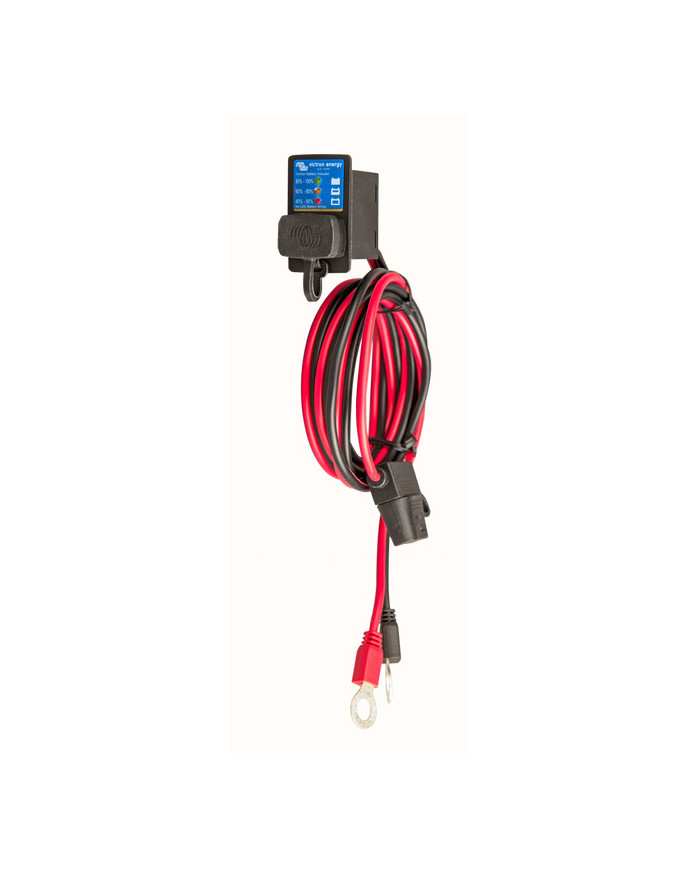

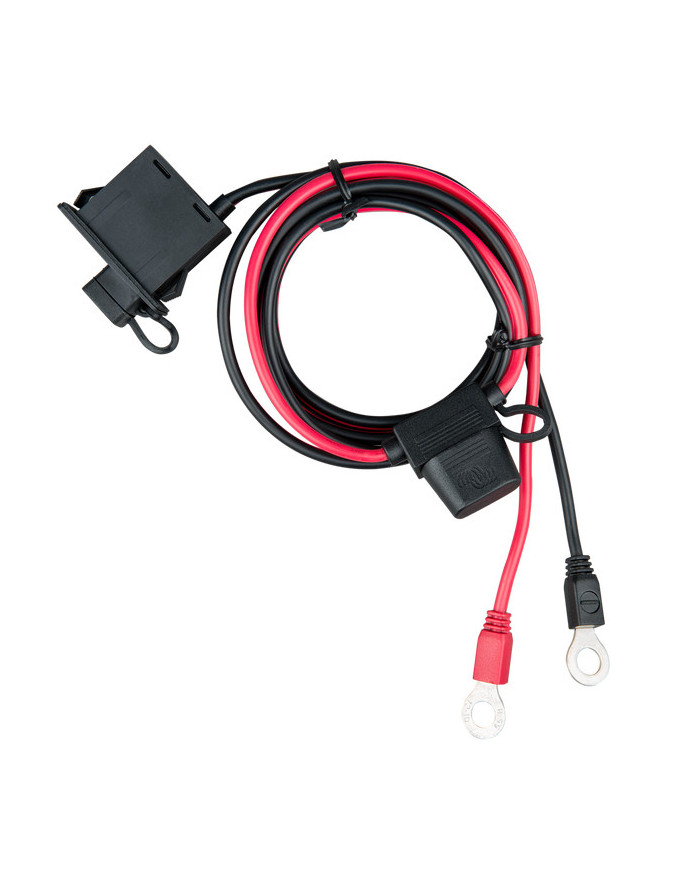

Victron Battery Indicator Panel (M8 eyelet connector / 30A ATO fuse)
Cable Length: 1.5 m
Cable c.s.a: 3.3 mm2 / 12 AWG
Maximum Current: 20 Amps
(Batteries, Charger, and accessories not included)
Recipient :
* Required fields
or Cancel
Cable Length: 1.5 m
Cable c.s.a: 3.3 mm2 / 12 AWG
Maximum Current: 20 Amps
A Practical solution for Battery Management suited for all BPC/BSC Chargers with DC Connector

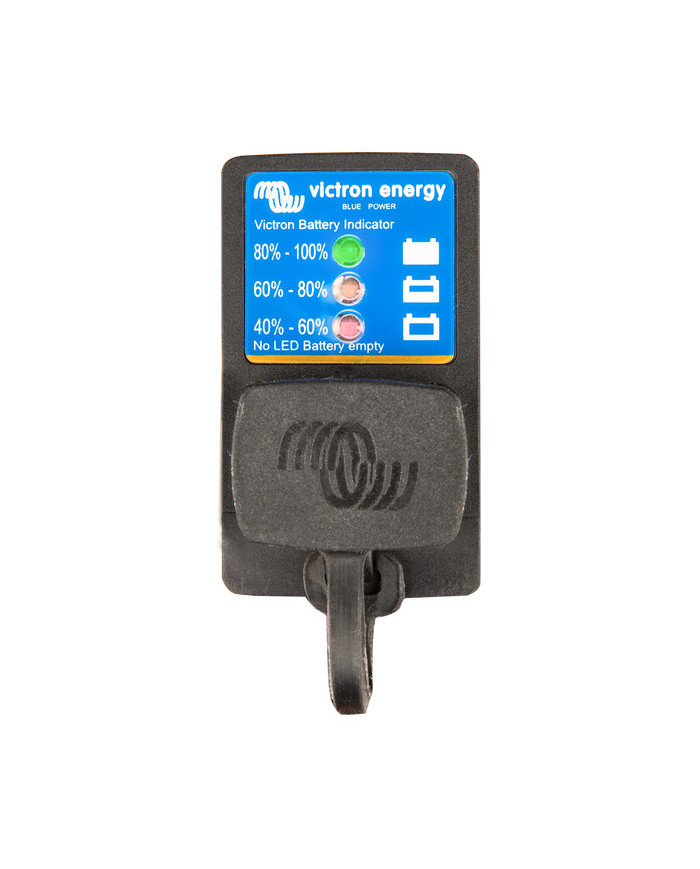

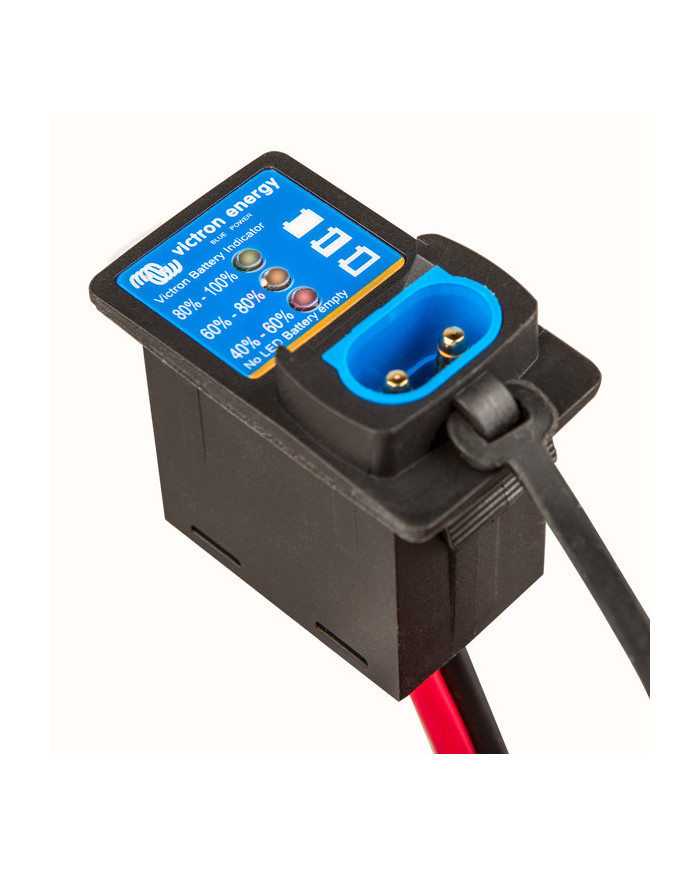

The battery indicator shows the status of the battery.
It is an accessory for the Blue Smart and Blue Power IP65 Chargers. It is suitable for 12V lead acid batteries only (flooded, GEL, AGM)
After using the battery it takes about 30 minutes for the battery to regain its steady state condition and for the panel to show a correct status indication.
Green light: Battery does not need to be charged. Battery 80%-100%
Orange light: Battery can be charged. Battery 60%-80%
Red light: Battery needs charging.
Battery 40%-60% No light: charge immediately to prevent sulfation. Battery <40%
CLICK HERE TO DOWNLOAD SPECIFICATIONS AND INSTRUCTION LEAFLET
